Product Overview

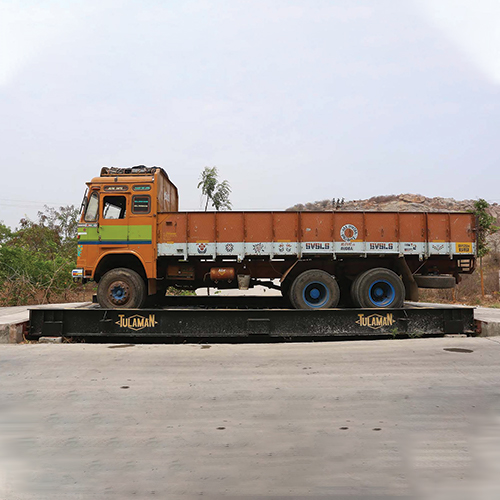

Tulaman has pioneered and manufactured India’s First Electronic Weighbridge.Tulaman’s fully welded, monolithic and sleek & robust structures make its weighbridges accurate, durable & reliable. Tulaman manufactures both Pit / Pit less weighbridges in various Sizes, Capacities and Accuracies.
Tulaman has the distinction of having approved models for both Class II & Class III for its weighbridges.Tulaman customizes weighbridges to suit the various requirements of its esteemed clients.
BUILT FOR INDUSTRY DEMANDS
Tulaman Electronic Weighbridges are made for long-lasting performance in demanding environments. With pit and pit-less options, rugged platforms, and accurate load cells, they ensure consistent, error-free weighment. Ideal for industries, logistics hubs, and public weigh stations, these systems offer smooth operation, simple calibration, and durable structure; all backed by proven engineering since 1968.
TECHNICAL SPECIFICATIONS
| Capacity (MT) | Readability (kgs) | Platform Size (mtrs) | No. of Load Cells |
|---|---|---|---|
| 30 / 40 / 50 | 5 / 10 | 9 x 3 | 4 |
| 40 / 50 | 5 / 10 | 10 x 3 | 4 |
| 40 / 50 | 5 / 10 | 12 x 3 | 4 |
| 50 / 60 | 10 | 14 x 3 | 6 |
| 50 / 60 | 10 | 16 x 3 | 6 |
| 80 / 100 | 10 | 16 x 3 | 6 |
| 50 / 60 | 10 | 18 x 3 | 6 |
| 80 / 100 | 20 | 18 x 3 | 6 / 8 |
| 120 / 150 | 20 / 50 | 18 x 3 | 8 / 10 |
FEATURES
| STANDARD | OPTIONAL |
|---|---|
| ✓ Dual Range / Dual Accuracy | ✓ V.B. Based Weighing Software for PC |
| ✓ Auto Calibration / Smart Calibration | ✓ DLL File for Custom Applications |
| ✓ Password & Hardware Protection for Calibration & Features | ✓ WIFI / BLE / Ethernet / RS485 (Modbus) |
| ✓ Operator Login for 5 Members | ✓ Software with Camera Feature |
| ✓ 10-Field Data Entry (Veh, Prop, Party, Tpt, Dest, etc.) | ✓ Unmanned System |
| ✓ Field-wise / Daily / Weekly / Monthly / Pending Reports | ✓ Integration with ERP |
| ✓ Storage: Up to 1 Lakh Vehicle Records | |
| ✓ RTC with Battery Backup (72 Hours) | |
| ✓ Public Weighbridge Charges Option | |
| ✓ View / Print / RST / Vehicle Recall Facility | |
| ✓ Display of Weighment in Kg / Ton | |
| ✓ Power ON Weight | |
| ✓ Calibration Date Viewing | |
| ✓ Weighment Ticket (Normal / Pre-Printed) |
PLATFORM
- Pit / Pit less Type Structures.
- Fully Fabricated Structure.
- Robust Construction.
- Withstands Dynamic and Side Loads.
- Longitudinal, Lateral Stoppers Provided.
- Anti-Skid Strips Provided.
- 150% Over Load Protection.
- Ease of Installation.
LOAD CELLS
- Compression type / Double ended shear Beam.
- In built surge Protection.
- Immune to side Loads.
- Hermetically Sealed.
- Helium leak tested and they exceed the requirement of IP 68.
- Easy for Installation.
- We offer our modern type of Electronic Weighbridge the Load cells are immune to side loads, hermetically sealed and are helium leak tested. They exceed the requirement of IP 68. Loadcells are temperature compensated in the range of – 10°degrees C to + 40°degrees C. They have a safe overload capacity of 200% and ultimate load capacity of 300%. They are completely immune to side loads. Loadcells are to OIML-R60 International Standards.
WEIGHING TERMINAL : TECHNICAL SPECIFICATIONS
- Operating Voltage: 90 to 270 V., A.C, 50/60 Hz, Fuse Protection: 2.5 A.
- SMPS type Power Supply with EMI/RFI filters with surge/spike Protection.
- Operating Temp. Range: 10 c to 55 c.
- Humidity: 0 to 95% relative humidity non condensive.
- ADC Error, Excess Load Buzzer for Fault & Data Entry.
- 16 characters X 2 Lines LCD Display with Back Light for data Entry, Weight, Date and Time.
- 6 Digit, 7 Segment,14mm Character Height Bright Red LED Display for Weight.
- ½”, 1″, 2.3″, 4″, 5 digits, 7 segment Bright Red LED Extra display.
- RS 232-C Serial Port to connect P.C.
- Centronics Parallel port to connect printer
- Supports up to 8 Load cells of each 350 ohms
- 104 Keys Alpha Numeric Computer Key Board for data entry.
- Graphic LCD display 1030 X 40 with blue back light
APPLICATIONS
INSTALLATION & AFTER SALES SERVICE
Tulaman factory-trained engineers provide professional installation and after-sales maintenance. Tulaman also undertakes preventive maintenance through an annual maintenance service contract. Tulaman’s after-sales-service keeps your scale working at top efficiency at all times.
Successfully completed
projects
employees
the world
We’re your trusted partner for reliable weighing solutions. Whether it’s product info or service support, our team is here to help. Reach out to us anytime, we’d be happy to assist you.
Frequently Asked Questions
We’ve put together answers to the questions we get asked the most. If your query isn’t listed here, just reach out to us.
What types of weighing systems do you offer?
Yes, all our weighing systems conform to OIML standards and Indian Weights & Measures Regulations.
Do your products comply with Indian and international standards?
Pellentesque justo lectus, a ipsum morbi at dui at, libfusceagna aliquet ridiculus lacus euismod porttiolor nec vestilum sed aliquam, sem mauris morbi.
Can you provide customized weighing solutions for specific industries?
Absolutely. We specialize in turnkey systems and tailor-made solutions to suit different industrial needs.
Do you provide installation and on-site commissioning?
Yes, our trained engineers handle complete installation and commissioning for all our weighing systems.
What kind of after-sales support do you offer?
We provide preventive maintenance, service contracts and prompt repair service whenever needed.
Choose Tulaman Electronic Weighbridges for strength, accuracy, and long-term performance.
Handles heavy loads and ideal for industries that demand reliable, regulation-compliant weighing every single day.
